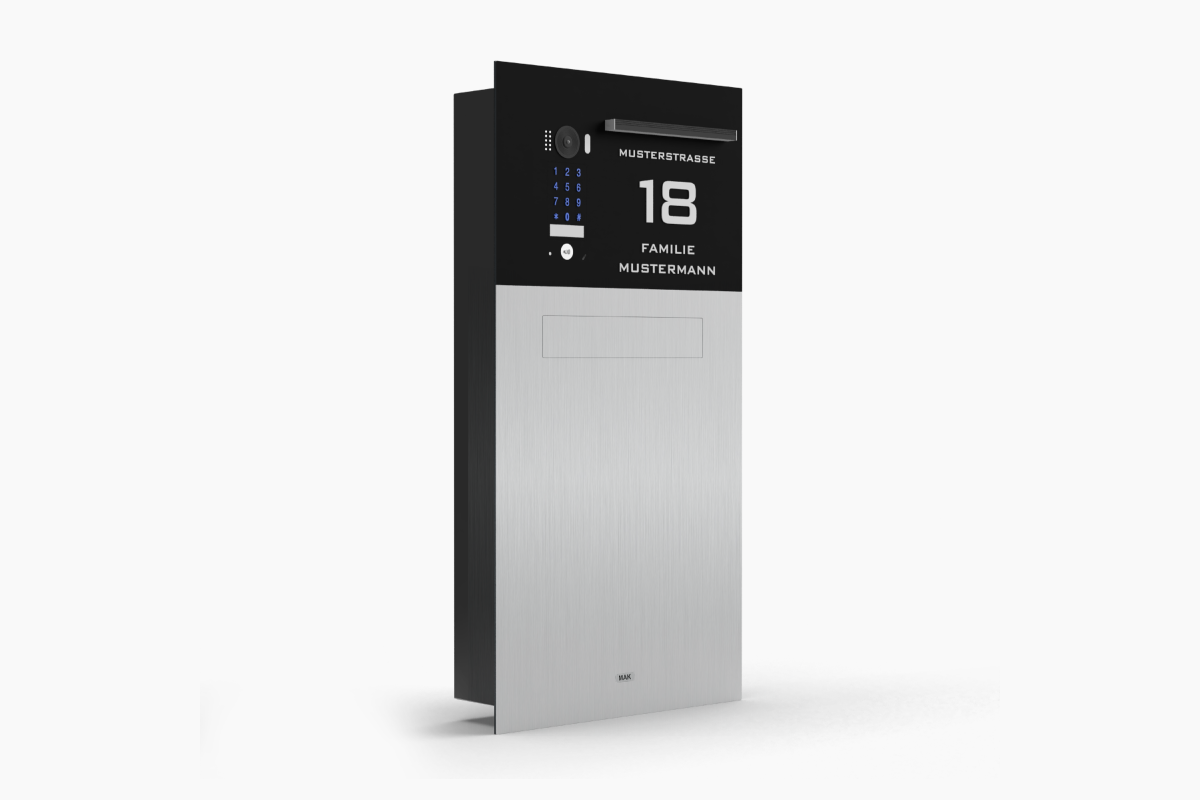

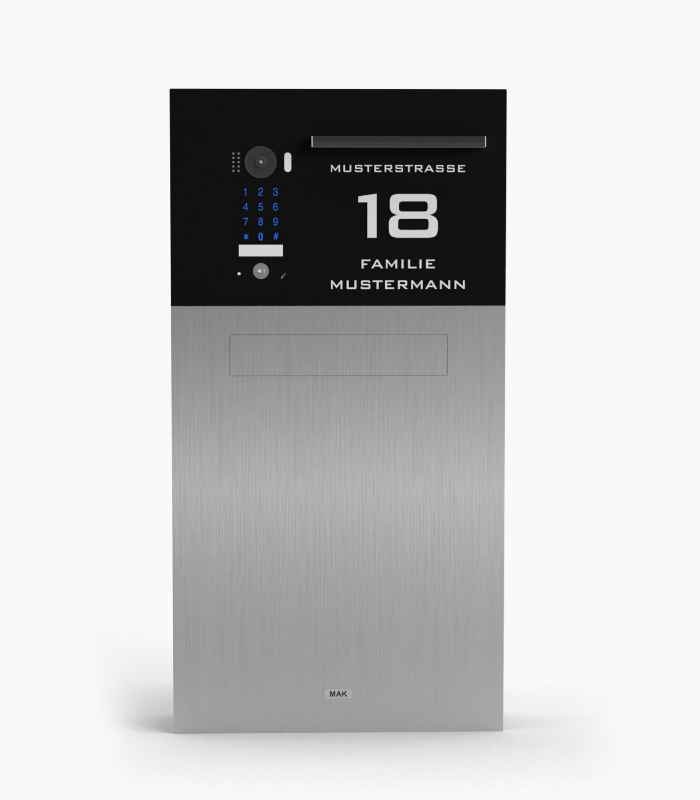

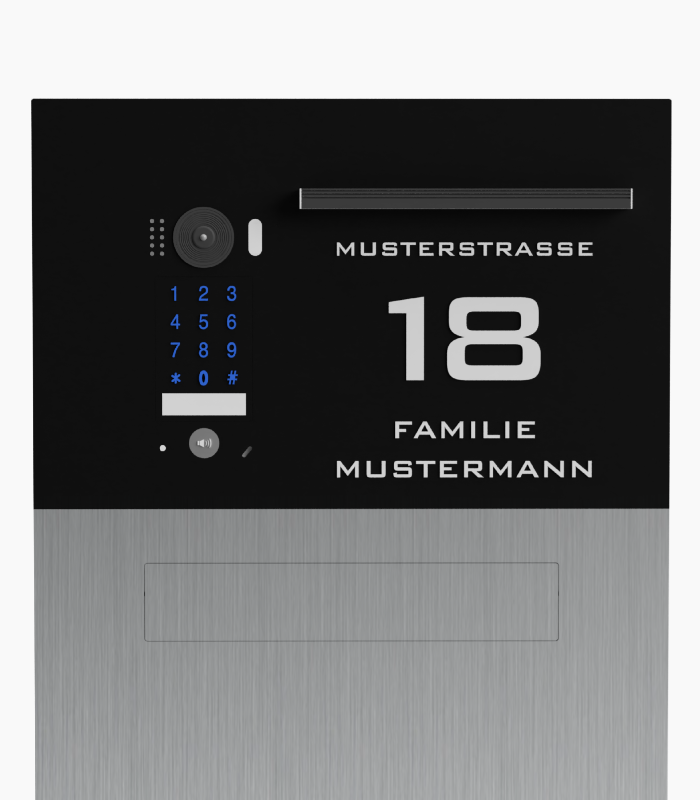

Modern MAK letterbox intercom system
We would be happy to advise you on planning your letterbox intercom system and are of course available to answer your questions at any time!
Integrated light sensor (day/night)
Camera with best resolution of 2 megapixels
Labeling made of scratch-resistant plastic glass with hard coating
Access control / code lock
Nameplate with LED lighting *Optional
Bell push
Loudspeaker
Letterbox with 16 liter volume
Everything you need in one complete package
Complete package
2-wire technology
WLAN connection
Free APP
LED lighting
Door opener function
2MP Full HD camera
170° wide-angle camera
7" capacitive touchscreen
Automatic photos and videos
Intercom function
Night vision LEDs
HIGHLIGHTS

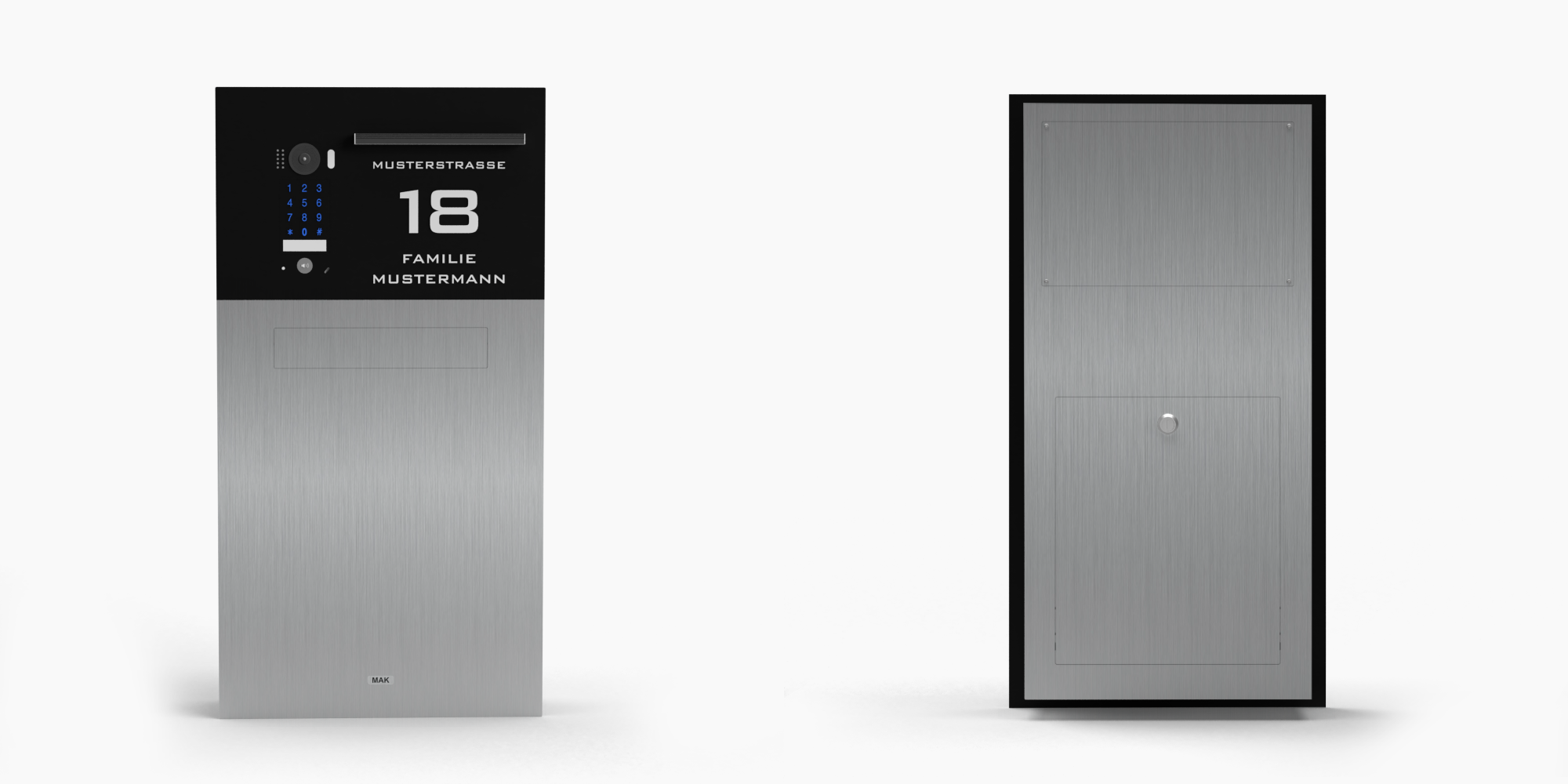

Production according to letterbox standard DIN EN 13724
Stainless steel front V2A 1.4301, polished 1 mm + 3 mm aluminum or powder-coated according to RAL
High-quality letterbox body made of 20 mm aluminum
Letterbox made of aluminum with powder coating, durable, maintenance-free and elegant
Lettering made of scratch-resistant plastic glass with hard coating
LED lighting with integrated light sensor (day/night) Incl. transformer 12V DC Insertion slot opening inwards with spring Removal door to be opened from above with opening limiter Removal protection - security standard Designer lock.
Transformer 12V DC
Insertion slot opens inwards with spring
Removal door opens from top to bottom and opening limiter
Removal protection - security standard
Designer lock with 2 keys
Specially manufactured aluminum hinges for insertion slot and mail removal door
High-quality finish on the outside and inside
Integrated video intercom system Incl. WLAN connection
How does the letterbox intercom system work?
Mobile see who is ringing, speak and open the door
Immediately see who is at the door:
The MAK letterbox intercom system shows you live video of every visitor ringing the doorbell.
You can then talk to your guests via the integrated intercom system and open the door at the touch of a finger on the touchscreen.
MAK also offers many other functions to make your everyday life easier.
Smartphone app - permanently free and subscription-free
PUSH notification on the smartphone after ringing at the door station
2-way communication between smartphone and door station
Free Android / IOS app for connection with the smartphone (max. 5)
Monitoring and controlling the letterbox intercom system using the app
Door opener function via app (2 door opener relays)

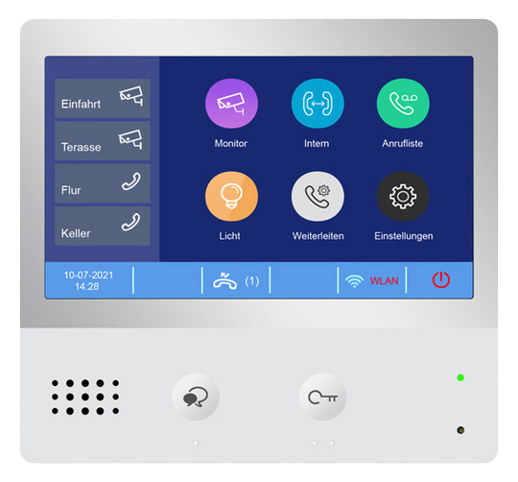

7" capacitive touchscreen
You can see the live image of your visitors on the 7" monitor and can open the door at the touch of a finger.
Enjoy added convenience by connecting several monitors together: you can use all the functions of your MAK letterbox intercom system and, for example, open the door from your favorite room.
You can integrate up to 4 monitors into your system.
With multiple monitors, you can also use the convenient intercom function, which allows you to communicate easily between different monitors.
With the intuitive graphical user interface, it only takes a few taps to quickly access every function.
High-quality polyphonic ringtones make every visit even more pleasant: from the classic ringtone to "Für Elise", there is something for every taste.
So that you can store even more videos and photos of visitors, the internal memory can be expanded with a standard microSD card up to 32GB.
This gives you enough space for hundreds of videos and up to 1000 photos.
If required, you can export the data to your computer and save it permanently.
2MP Full HD camera with super wide angle
The MAK letterbox intercom system with full HD camera guarantees a crystal-clear image, without delay or flickering.
The video is forwarded to the indoor station(s) in real time.
Zoom and pan function
The zoom function enlarges the picture at the front-door station.
The desired image section can be set at the front-door station.
(Panorama 170° or detail left/center/right 110°)
Design layout
We will send you a draft by e-mail before production.
You confirm the production or inform our graphics department of your change requests.
The stated delivery time refers to production after your approval.

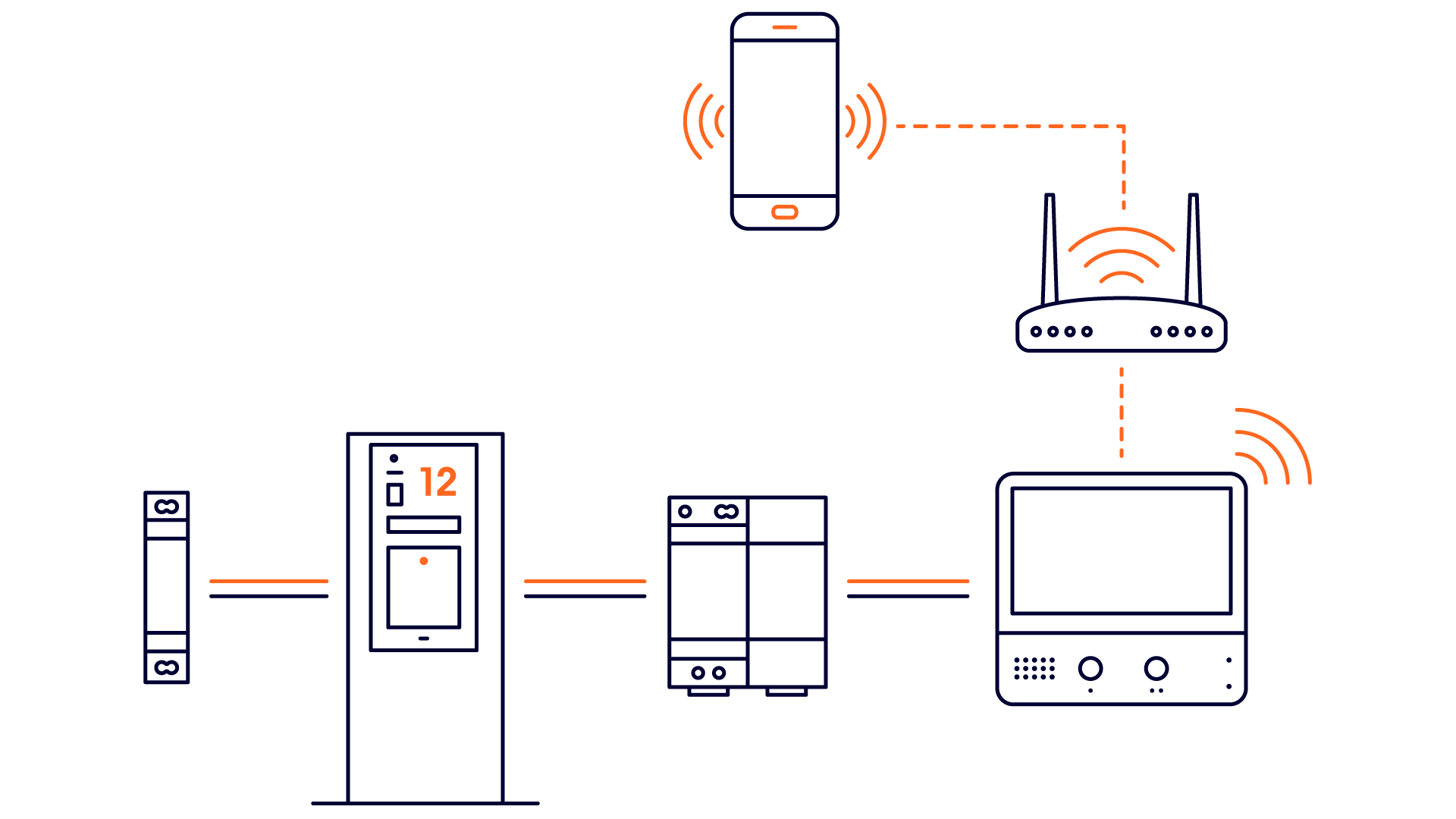

Particularly quick and easy installation thanks to 2-wire technology
Transformer for the LED lighting 12V DC
Letterbox intercom system MAK
Power supply unit for the video intercom system 24V DC
WLAN router
Smartphone app
Mobile radio
WLAN

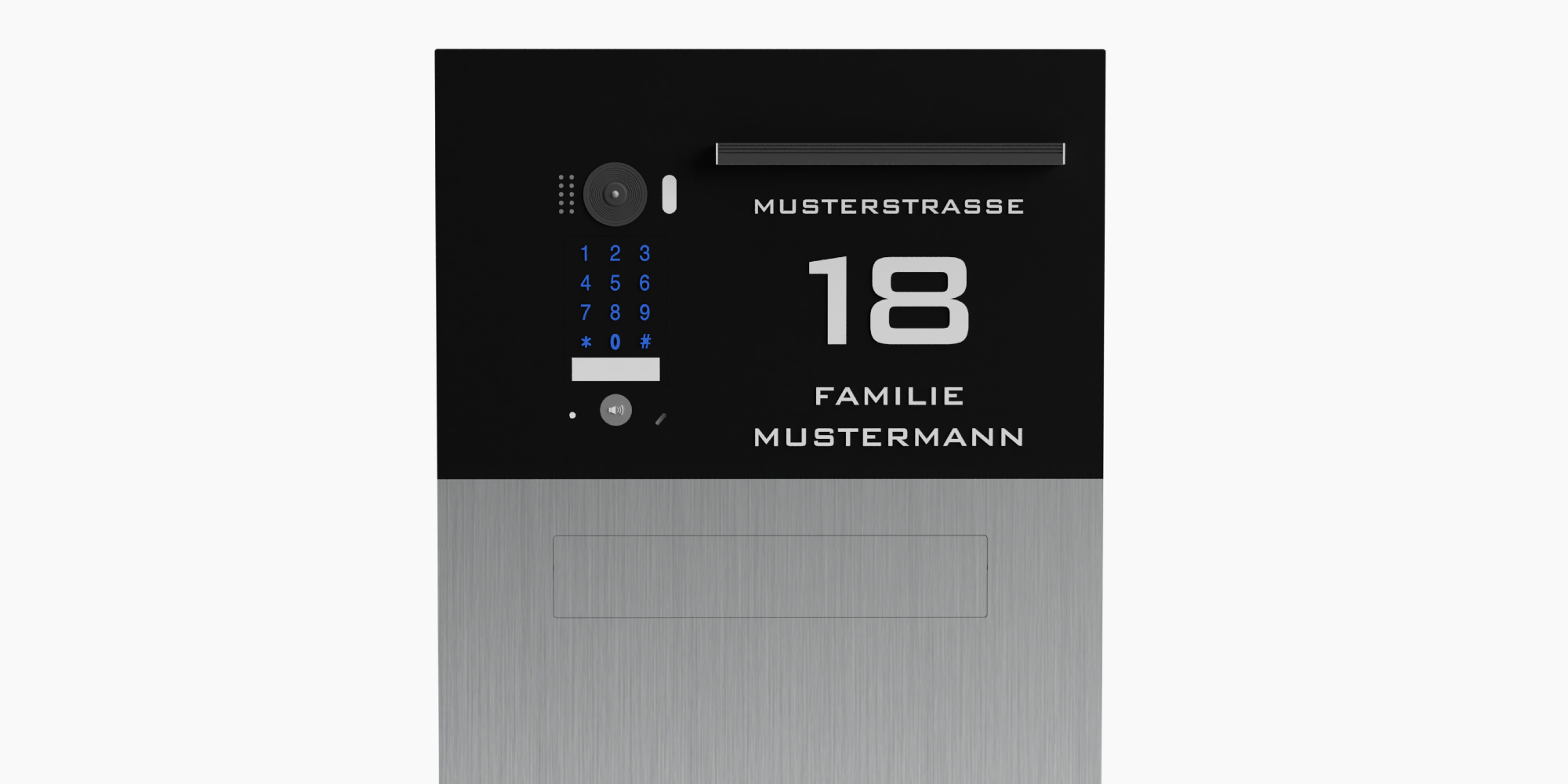

Letterbox intercom system MAK
Original price was: 1.959 €.1.399 €Current price is: 1.399 €. inc. VAT
Complete 2-wire BUS technology package ready for connection
TECHNICAL DETAILS
| Brand |
MAK |
|---|---|
| Technology |
2-wire technology |
| Indoor call station |
WLAN connection |
| APP |
Free of charge |
| Color |
Polished stainless steel ,RAL color |
| Labeling |
House number / Street / Name |
| Lighting |
LED lighting Incl. |
Data sheet
DATA SHEET INDOOR STATION AND DOOR STATION
- Monitor 7"
(17.78 cm diagonal)
"Crystal Clear
- Integrated image memory, 118 photos
- If a microSD card is inserted, videos with a length of 10 seconds can be saved (32GB)
- Acrylic glass front
- Capacitive touch screen
- 22 ringtones
- Handset-free operation
- Door opener function 2x
- Input for floor push-button and additional chime
- Intercom function
- Setting the color / brightness / contrast / ringer volume / microphone sensitivity via the on-screen display (OSD on screen display)
- Operating languages: DE, EN
- Time-controlled ringer volume day / night
- Do not disturb function
- Compatible with fisheye outstations, supports zooming and panning
- Favorites bar in the menu
- Connection of up to 10 IP cameras possible (triple stream required / 640x480px)
- Resolution 800x480px
- Dim.
174x161x22 mm
- Operating voltage: 24V DC
- Power consumption idle/operating at 24V DC in W: 1.8W/8.16W
- Delivery includes connection plug, wall bracket, fixing screws and dowels
- User manual German/English
- Color camera with LED lighting (up to 4m)
- Camera: 1/2.7'' with best resolution of 2 megapixels (fisheye camera)
- Camera angle 170° horizontal, 85° vertical
- One bell button
- Replaceable nameplate *Optional
- Code lock (keypad) / door opening by numerical code
Master code with up to 12 digits possible and also temporary codes possible for one-time door opening by the gardener as an example.
Furthermore, up to 40 codes can be set per relay for different user groups.
- One potential-free relay switching contact for electric strikes or similar (potential-free or 12V DC max. 250mA direct)
- Optionally, a second electric door opener can be connected via our additional module and conveniently operated from the indoor station
- Door opener duration adjustable from 1-99 seconds
- Voice messages for visitors
- Operating voltage: 24V DC
- Power consumption idle/operation in W: 1W/3W
- Ambient temperature: -20 to +55°C
- IP 54
- Various configuration options available:
Switching the LEDs on/off, various image displays such as zoom image and full image, switching the doorbell tone on/off at the door station, adjusting the camera resolution, lighting time, adjusting the color of the keypad and much more...
- Delivery includes connector plug, fixing screws and dowels
- User manual German/English
Attention: When operating an electric strike on the potential-free contact, only use 12 - 24V DC max. 1A. Use RLC module for higher switching capacity.
MOUNTING HEIGHT
Whether standard or customized - MAK products impress with their functionality and durability.
We would be happy to advise you on planning your letterbox intercom system and are of course available to answer your questions at any time!

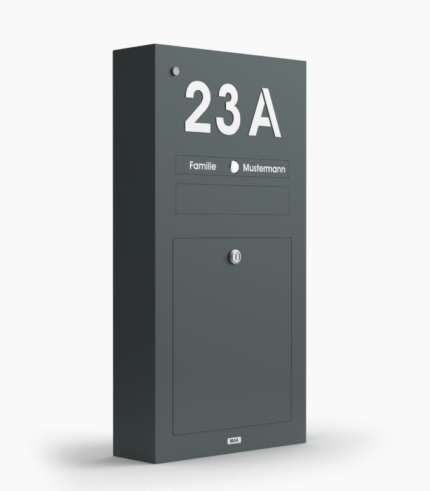

Letterbox intercom system CUBE
